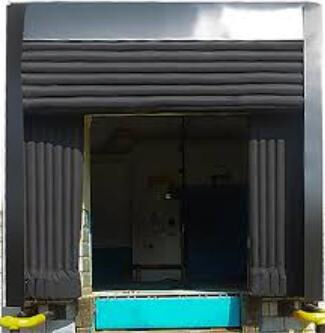

Mechanical Extended PVC Dock Shelter for Sealing and Insulation at Loading Docks

MOQ:	1
Price:	500

Detail Information

Product Description

Detail Information

Certification:

Model NO.:

MF-DS

Opening Type:

Power Driven

Operating Temperature:

-30°C To 70°C

Thickness:

3.0 Mm

Width:

3400/3600(mm)

Height:

3400/3800(mm)

Top Airbag Elongation:

1200(mm)

Side Airbag Elongation:

800(mm)

Top Visor:

500(mm)

Side Visor:

250(mm)

Power Supply:

380V,50Hz

Power:

0.75Kw

Protection Level:

IP54

Airbag Inflation Time:

25s

Maximum Tensile Capacity:

>290N/mm2

Highlight:

Mechanical Extended Dock Shelter

PVC Material Dock Door Seal

Sealing and Insulation Loading Dock Shelter

Product Description

Dock Door Seal Factory Mechanical Extended PVC Dock Shelter

Mechanical dock shelters are manufactured in compliance with European standards and designed for sealing between loading/unloading docks and freight vehicles. These shelters ensure fast, safe loading operations and provide an ideal configuration for medium-strength loading sites.

Product Features

Suitable for vehicles of any size from small trucks to standard trucks
Enables loading and unloading in any weather conditions
Excellent sealing function prevents wind and foreign matter entry
Constructed with hot-dip galvanized steel arc (60 x 30 mm cross-section)
Side and top canvas made of polyester PVC self-extinguishing textile (750 g/m³)
Reinforced at optimal stress points for enhanced durability

Technical Specifications

Width	3400/3600 (mm)
Height	3400/3800 (mm)
Top airbag elongation	1200 (mm)
Airbag elongation on both sides	800 (mm)
Top visor	500 (mm)
Side visor	250 (mm)
Profile color	Aluminum color
Door color	White
Control method	Switch/platform control unit
Power supply	380V, 50Hz
Power	0.75Kw
Control unit	External
Protection level	IP54
Airbag inflation time	25s
Operating temperature	-35°C ~ +70°C
PVC curtain board thickness	3mm
PVC curtain board unit weight	3.6kg/m
Airbag thickness	0.5mm
Airbag material	Cordura 1000
Airbag unit weight	0.4kg/m
Maximum tensile capacity	>290N/mm²
Foam board thickness	50mm
Internal test/outside color	White

Product Gallery

Frequently Asked Questions

What is the minimum order quantity for the product?

There is no minimum order quantity for our products. We recommend using wooden crates for protection during shipping.

Sizes and application scenarios of various products in our factory?

We provide customers with professional suggestions and drawings based on their needs to deliver optimal solutions.

Can I get industrial door samples for quality checking?

Yes, samples are available for quality verification.

How do I get a price for the product I need?

Please provide the exact size and quantity requirements. We will prepare a detailed quotation plan according to your specifications.

What payment terms will you accept?

We typically accept T/T (Telegraphic Transfer) payments.

We would like to be your agent in our area. How to apply for this?

We welcome partnership opportunities. Please send your business ideas and company/personal information via email to discuss collaboration.

Can you send me the price list?

Yes, we can provide quotations for standard sizes. Since our products are customized to your requirements, we'll prepare pricing based on your specific dimensions.

Is it convenient to visit your factory?

Yes, our factory is conveniently located just 2.5 hours from Shanghai Airport. We welcome visitors to tour our facilities and experience local hospitality.
